Prestige

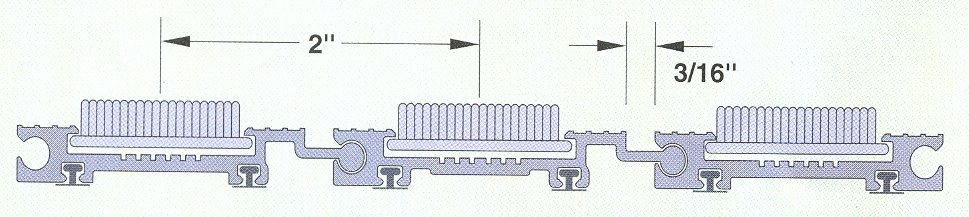

Aluminum Hinge Roll Up Mats are made of quality 6063-T52
aluminum alloy -either anodized or mill finish - spaced 2"
on center with 1" x 3/16" drain holes spaced 1-1/2"
on center between all rails. This optimum rail space provides
excellent water drainage and dirt entrapment yet prevents even
the smallest heel from catching. Our aluminum hinge mats provide
long-lasting stability and size retention. This quality-made mat
is available with the same options as the Rubber
Hinged Mats
Please Note: The maximum rail length in one
uninterrupted piece is 12'. Wider mats will be supplied in two
or more sections. It is preferable to locate the seams; i.e. where
mat sections come together, away from main traffic areas such
as directly between entrance doors.
|
|
| |

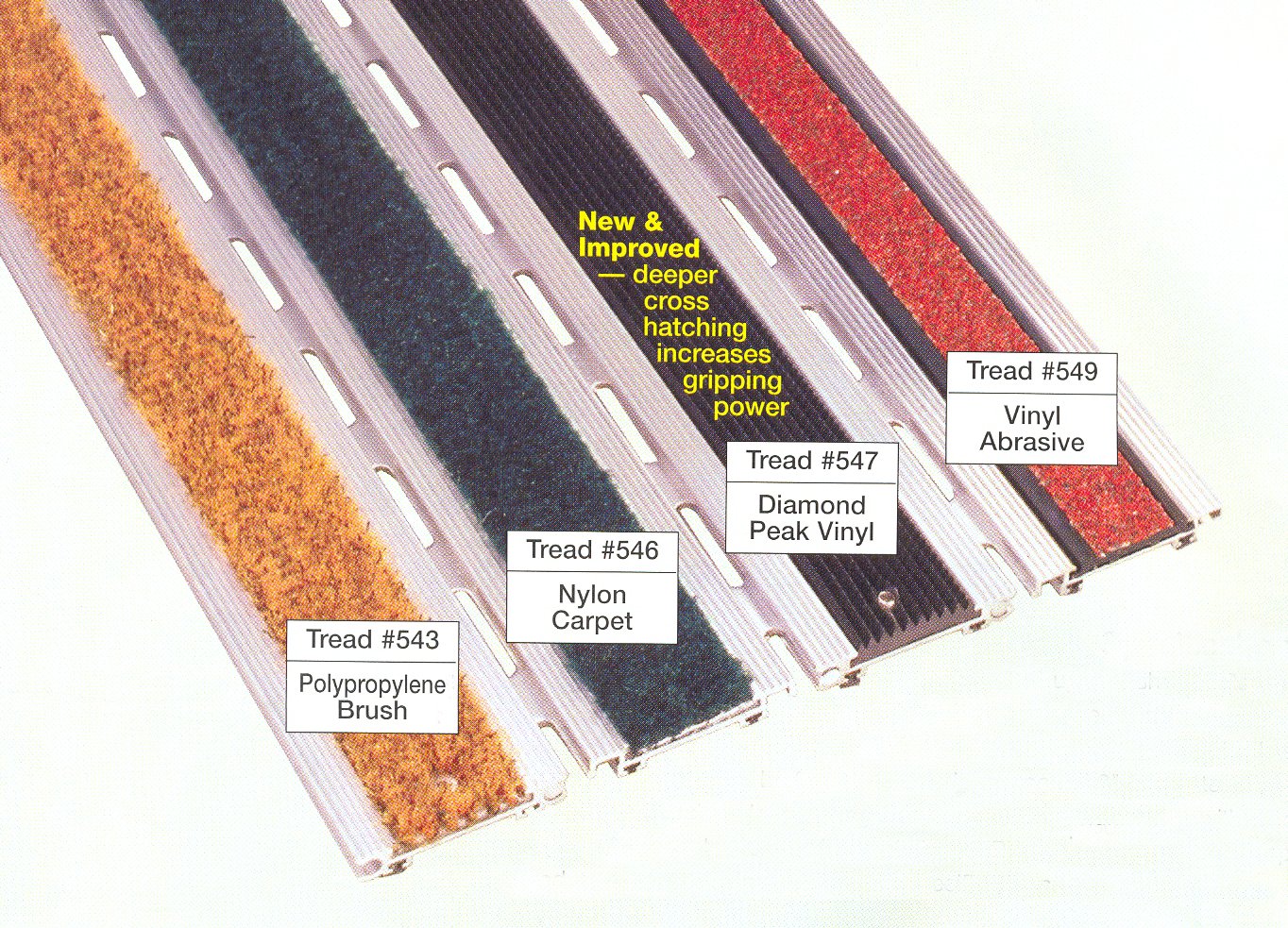

Brush
Tread
#543
|
|
| Specification
Insert: Roll-up mat shall be The Mat King Prestige Aluminum
Hinge Brush Tread Mat Product Number 3300-400-0543.
Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a long lasting size retentive aluminum hinge with
1" x 3/16" slotted holes for maximum drainage. Brush inserts
shall be heavy denier polypropylene olefin fibers bonded to durable
vinyl backing. Three insert colors are available. |
| Product
Number: 3300-400-0543 |
| Description:
Aluminum Hinge Aluminum Rail Mat 543 Brush Tread, Finish: [Mill,
Black, Other ____] Brush Tread Color: ____; Size: ___ x ___; (rack#:
Mat-543) |
| |
| Carpet
Tread
#546 |
|
| Specification
Insert: Roll-up mat shall be The Mat King Prestige Aluminum
Hinge Carpet Insert Mat Product Number 3300-400-0546.
Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a long lasting size retentive aluminum hinge with
1" x 3/16" slotted holes for maximum drainage. Carpet
inserts shall be of 100% nylon, fusion bonded to backing for durability
and mechanically secured in tread rails. Sixteen insert colors are
available. |
| Product
Number: 3300-400-0546 |
| Description:
Aluminum Hinge Alumuminum Rail Mat No. 546 Carpet Tread, Finish:
(Mill, Black, Other: _____); Carpet Tread Color: _____; Size: ___
x ___ $/ea (rack#: Mat-546) |
| |
Vinyl
Abrasive Tread
#549
|
|
| Specification
Insert: Roll-up mat shall be The Mat King Prestige Aluminum
Hinge Vinyl Abrasive Insert Mat Product Number 3300-400-0549.
Tread rails shall be 6063-T52 aluminum spaced 2" on center
connected with a long lasting size retentive aluminum hinge with
1" x 3/16" slotted holes for maximum drainage. Insert
Treads shall be a rigid vinyl insert with factory secured abrasive
grit tape surface. Five insert colors are available. |
| Product
Number: 3300-400-0549 |
| Description:
Aluminum Hinge Aluminum Rail Mat 549 Vinyl Abrasive Tread, Finish:
[Mill, Bl;ack, Other ____] Vinyl Abrasive Tread Color: ___; Size:__
x ___ $/ea (rack#: Mat-549) |
| |
| Vinyl
Tread #547 |
|
| Specification
Insert: Roll-up mat shall be The Mat King Prestige Aluminum
Hinge Dual Durometer
Vinyl Insert Mat
Product Number 3300-400-0547. Tread rails shall be
6063-T52 aluminum spaced 2" on center connected with a long
lasting size retentive aluminum hinge with 1" x 3/16"
slotted holes for maximum drainage. Insert Tread
surface shall be convex to permit drainage and crosshatched to improve
slip resistance. Six insert colors are available. |
| Product
Number: 3300-400-0547 |
| Description:
Aluminum Hinge Aluminum Rail Mat 547 Vinyl Tread, Finish: [Mill,
Black, Other ___]; Vinyl Tread Color: ____; Size: ___ x ___; (rack#:
Mat-547) |
| |
|
Heavy
Duty Aluminum Roll-Up Entrance Grate |
| Heavy Duty yet easy
to maintain. |
|
|
| Rolling Load of 1,000 lbs. per wheel.
|
|
|
| Stable positive-locking
thermoplastic foot and hinge base. |
Click HERE
to see detailed drawings and close-up photographs of the
Heavy
Duty Aluminum Roll-Up Entrance Grate |
| Continuous drainage slots
channel dirt and water away from the walking surface. |
| Custom sizes, nice variety of metal
finishes and tread inserts. |
|
|
|
| |
|
|
