Major Metal Cast Aluminum or Cast Iron Abrasive Stair Treads and Nosing for Existing Stair Repair and Curb Applications
Stair Treads and Nosing for Maximum Durability in Rough Use Area.


Major Metal Cast Aluminum or Cast Iron Abrasive Stair Treads and Nosing are not intended to help you make a fashion statement. So, don't expect any pretty pictures here. This stuff just works. It can be  specified for:
  • Maximum Durability in Rough Use.
  • Indoor or Outdoor Use
  • New Construction or Renovation
  • Resistance to Unusually Corrosive Environments.
  • Anti-Slip Safety Properties.
  • Unusual Field Conditions.





Poured Concrete Applications Steel Pan Applications

Existing Stair Repair Applications

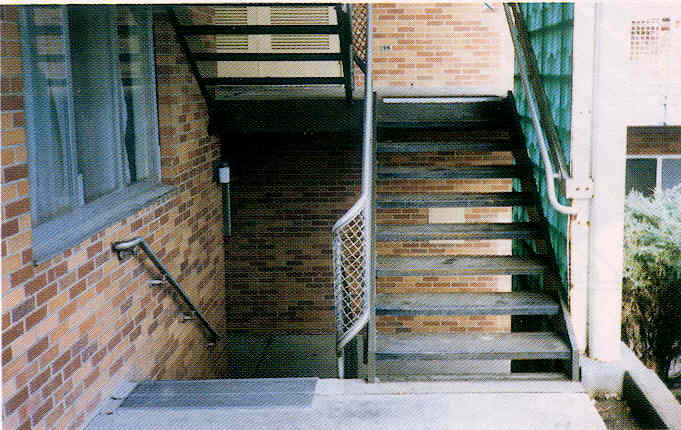

Structural Treads
Concrete Curb Applications Miscellaneous Applications
  • Cast Iron Treads not recommended for corrosive or exterior environments.
  • Castings are subject to usual foundry draft, tolerances and thickness +/- 1/8".
  • Nosing will show a parting line on nose surface.
  • Standard measurements are from top of nosing.
  • Custom lengths to +/- 1/16".
  • Standard hole size 1/4" with countersunk hole tops.
  • Beveled Treads: Contact The Mat King regarding availability per application.
  • Anchors can be Integral, Wing Type, Shields and Screws or Tapcon Screws. Standard Drill Pattern is 3" from ends and 12" on center between those end holes. Custom drill patters must be provided with purchase order.
  • Depth Cast Aluminum Cast Iron Depth Cast Aluminum Cast Iron
    3"
    P/N 9833-100-1603
    P/N 9833-200-1603
    3"
    P/N 9833-100-0203
    P/N 9833-200-0203
    4" P/N 9833-100-1604 P/N 9833-200-1604 4" P/N 9833-100-0204 P/N 9833-200-0204
    6" P/N 9833-100-1606 P/N 9833-200-1606 6" P/N 9833-100-0206 P/N 9833-200-0206
    Please Note: Type 116A can be provided with a beveled back edge for treads of 6" or wider at an additional charge.
    Custom Depths require pattern with order. Custom Depths require pattern with order.

    Depth

    Cast Aluminum
    Cast Iron
    Depth
    Cast Aluminum
    Cast Iron
    1.5"
    P/N 9833-130-5015
    P/N 9833-230-5015
    2.5"
    P/N 9833-140-5025
    P/N 9833-240-5025
    Pricing: Due to the specialty nature of this material, pricing is by quotation according to lengths, coverage of landings and accessories required.  Price quotes are furnished at no charge and with no obligation.


Maximum Length versus Depth - To be used as a guide when developing a specification or bid request. Platform recommended piece size. Consult The Mat King for details.
Type Number Metal Depth Thickness Structural Max Length Non-Structural Max Length Diagram
100 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"

asa

Type 100

Architectural Specifications

    6" to 12" 5/16" to 5/8" N/A 6'
101 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
101SP Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
102 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
103 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
104 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
110 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
116 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
116A Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
120 Cast Aluminum or Cast Iron 1.5" to 6" 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" N/A 6'
105  Cast Aluminum or Cast Iron 6" to 12" 1/2" to 5/8" 5' 6'
105-A Cast Aluminum or Cast Iron 1-1/8" Slanted 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" 5' 6'
105-B Cast Aluminum or Cast Iron 1-1/8" Slanted 5/16" to 3/8" N/A 8'-6"
    6" to 12" 5/16" to 5/8" 5' 6'

106 Cast Aluminum or Cast Iron 4" to 6" 1/2" to 5/8" N/A 8'-6"
      6" to 12" 1/2" to 5/8" 5' 6'
107 Cast Aluminum or Cast Iron  10" to 12" 1/2" to 5/8" 5' 6'
107-A  Cast Aluminum or Cast Iron 10" to 12" 1/2" to 5/8" 5' 6'

117

  Cast Aluminum or Cast Iron

4" to 6"

1/2" to 5/8" N/A 8'-6"


6" to 12"

1/2" to 5/8" 5' 6'

117-A

Cast Aluminum or Cast Iron

4" to 6"

1/2" to 5/8" N/A 8'-6"


6" to 12"

1/2" to 5/8" 5' 6'

150

Cast Aluminum or Cast Iron 1.5" to 1.5"

3/8"

N/A 6'


250

Cast Aluminum or Cast Iron 2.5" to 2.5"

1/2"

N/A 6'




Price Quotation Requirements: Please provide contact name, company name, phone and Fax numbers, as well as the following details of your material requirements:
1. Quantity of pieces required of each item.
2. Size of each item, i.e. width (front to back) and length of the tread.
3. Type of Tread, i.e. Product Number and Product name.
4. Thickness of tread.
5. Type of Application, i.e. Poured Concrete, Repair, Curb, Steel Pan, Structural, etc.
6. Type of Anchor.
7. City, State and Zip Code of "Ship To" address for determination of freight charges.
