| Thickness: all types are 9/32" (7.14mm) thick.
|

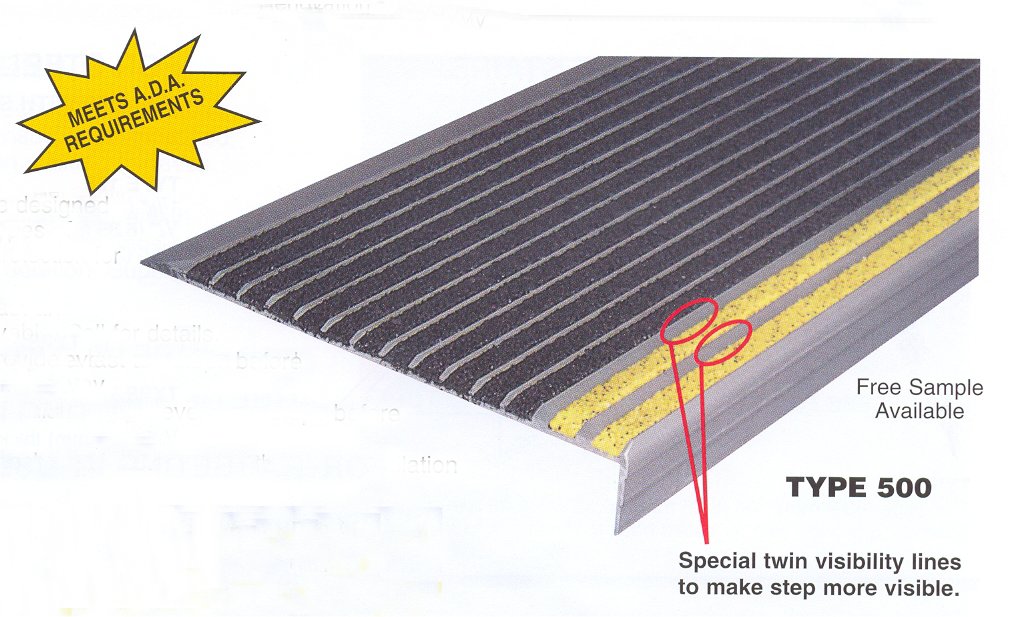

| Width: (Front to back) 9" standard (Type 500)
width fits all steps up to 13" |
| Nose Sizes:
1-1/8" straight (90o); SN slanted (83o);
1/4" straight; and square (no nose). |
| Length: Furnished in exact length required to 12'-0"
maximum. Treads are
ready to put down - no cutting or fitting necessary.
For proper length, subtract 4" from length of existing
step to provide 2" margin at each end.
Treads are furnished with 5/8" beveled ends.
|
| Fasteners:
Stair Repair Aluminum & Abrasive Grit Tread System Treads are
furnished drilled countersunk with double row of holes and complete
with #10 flat head screws.
If existing steps are other than wood, specify #10 screws,
lead expansion shields, and rubber base adhesive or TapCon®
Concrete Screws.
Stainless steel fasteners are recommended for exterior installation.
|
| Acrylic Based Construction Adhesive:
should be used in addition to mechanical fasteners on all steps
other than wood to assure a firm, watertight installation. |
| Plastic Leveling Compound: is used for filling in
worn steps to provide level bearing surface for Stair Repair Aluminum
& Abrasive Grit Tread System Treads.
Furnished in 50 lb. drums, which covers approximately 50
linear feet applied 1/8" thick. |
|
Colors of Abrasive Insert Grit
include: |
 |
 |
 |
 |
 |
 |
|
Light Green |
Light Brown
|
Light Red |
Concrete Grey |
Dark Green |
Dark Brown |
|
 |
 |
 |
 |
 |
|
|
Dark Red |
Blue |
Safety Yellow |
Black |
White |
|
| Pricing: Due to the specialty
nature of this material, pricing is by quotation according to lengths,
coverage of landings and accessories required.
Price quotes are furnished at no charge and with no obligation.
|
|
Stair Repair Aluminum & Abrasive Grit Tread System -
Standard Types and Sizes |
|
Product Number |
Width |
Nose
Type/Size |
Back
Size/Type |
Wt/LF |
Diagram |
|

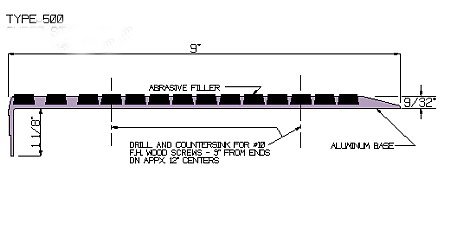

9831-100-0500 |
9" |
1-1/8" Straight |
1"
Beveled Back |
3.3# |
 |
|

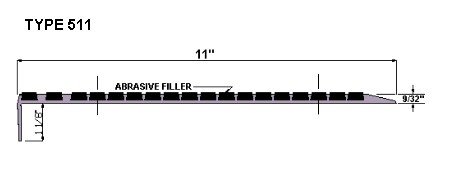

9831-100-0511 |
11" |
1-1/8" Straight |
1"
Beveled Back |
3.85# |
 |
|
9831-200-0500 |
9" |
1-1/8"
Slanted |
1"
Beveled Back |
3.3# |
 |
|
9831-200-0511 |
11" |
1-1/8"
Slanted |
1"
Beveled Back |
3.85# |
 |
|
9831-100-0182 |
8" |
1-1/8" Straight |
Straight
Back |
3.05# |
 |
|
|
|
|
|
|
|
|
9831-300-0181 |
8" |
1/4"
Straight |
Straight
Back |
2.65# |
 |
|
9831-400-0540 |
4" |
No
Nose |
1"
Beveled Back |
1.2# |
 |
|
9831-400-0570 |
7" |
No
Nose |
1"
Beveled Back |
2.5# |
 |
|
9831-400-0630 |
3" |
No
Nose |
Straight
Back |
1.1# |
 |
|
|
|
|
|
|
|
|
9831-400-0660 |
6" |
No
Nose |
Straight
Back |
2.2# |
 |
| 9831-400-6100 |
10" |
No
Nose |
Straight
Back |
3.3# |
 |
| |
| Rubber
Base Construction Adhesive |
|
Product Number |
Description |
Price |
|
|
9831-999-0001 |
1
Gallon Container Coverage = 40 - 50 LF/Gallon |
$34.10/gallon |
|
| |
| Plastic
Leveling Compound |
|
Product Number |
Description |
Price |
|
|
9831-998-0050 |
50#drum;
Coverage 50 LF x 1/8" thick |
$58.30/drum |
|
| |
|
| |
|
|
| |
 |
|
| |

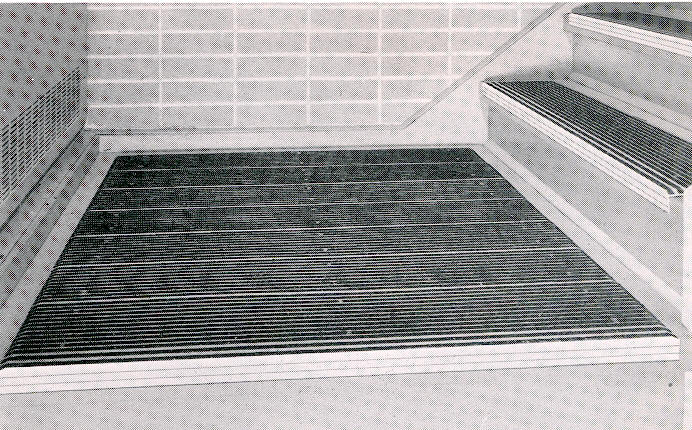

Landing
Coverage: Stair Repair Aluminum & Abrasive
Grit Treads with nose and flat treads in multiple sections
can be used to cover any landing or unusual tread depth.
Treads as pictured above, square sides or beveled, in
various widths cover any desired area. The length of landing
retreads should generally be the same as treads on steps
maintaining 2 " margin at each side. Stair Repair
Aluminum & Abrasive Grit Treads are ideal for locations
behind cafeteria counters, door sills, ramps, floor divisions
and in front of machines. |
|
|
| Price Quotation Requests Requirements:
|
| 1. Quantity of pieces required of each item. |
| 2. Size of each item, i.e. width (front to back) and length
of the tread. |
| 3. Type of Tread, i.e. Product Number and Product name.
|
| 4. Thickness of tread. |
| 5. Color of Grit Insert. |
| 6. City, State and Zip Code of "Ship To" address
for determination of freight charges. |
| |
