3M Static Control Anti-Fatigue Mat 9900 Series

3M^TM Static Control Anti-Fatigue Mat 9900 Series
A Step Forward in Comfort Mattin.

3M™ Static Control Anti-Fatigue Mats enable workers to stand comfortably for long periods while minimizing the fatigue associated with standing work.

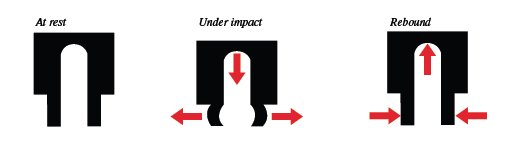

Manufactured from durable rubber, 3M Anti-Fatigue Mats consist of a matrix of hollow cylinders that function like a spring
when compressed. These mats provide a durable cushion that offers secure, stable footing and a unique energizing
responsiveness. Their structure provides a stable surface supported by rubber cells that soften in response to surface activity. These cells provide the most effective cushioning solution because the 3M Static Control Anti-Fatigue Mats get softer as
compressed, not harder like products made of foam.

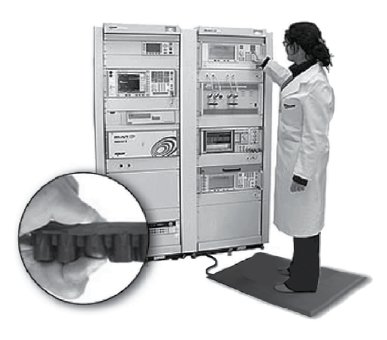

3M™ Static Control Anti-Fatigue Mats are easy to install and can be used at assembly and manufacturing workstations, warehouse and shipping areas, medical laboratories and in field service.

Here are the reasons why:

1. Optimized for just the right softness: 3M™ Static Control Anti-Fatigue Mats 9900 Series are
engineered to very specific parameters that reflect the latest research on optimal compressibility.

2. Encourages blood flow in the lower legs: 3M™ Static Control Anti-Fatigue Mats 9900 Series provide a stable surface supported by unstable cells that ‘soften’ as needed in response to surface activity.

3. Resists bottoming out: 3M™ Static Control Anti-Fatigue Mats 9900 Series have
been optimized to resist bottoming out without being too soft.

4. Provides response to worker movements: 3M™ Static Control Anti-Fatigue Mats 9900 Series technology has been designed to allow the movements of the body, providing a helpful anti-fatigue characteristic.

5. Balances shock absorption and resilience: 3M™ Static Control Anti-Fatigue Mats 9900 Series provide an optimum balance between shock attenuation and resilience.

6. Gets softer as compressed: 3M™ Static Control Anti-Fatigue Mats 9900 Series get
softer as they are compressed, without bottoming out.

7. Resists warping, bunching, and creeping: 3M™ Static Control Anti-Fatigue Mats 9900 Series are significantly sturdier than lightweight mats and resist
movement yet are easily removed for cleaning.

8. Easy to clean surface: 3M™ Static Control Anti-Fatigue Mats 9900 Series have a surface that can easily be swept or air vacuumed. Mats can be cleaned using a neutral cleaner following the simple procedure outlined in the instruction manual.

9. Durable structure and edges: 3M™ Static Control Anti-Fatigue Mats 9900 Series have
been designed to last for many years; to resist edge damage, tearing and premature failure of its elastic properties. The mats come with a three year limited warranty.

To Technical Data

To ANSI Standards

To Application Instructions

To Related Articles

Product Specification:
• Electricals: conductive < 1 x 10exp4
• Size: 3’ x 5’ with interlocking strips used to connect mats to configure larger sizes of 3’ wide up to any length; 22” octagonal shape
• Thickness: .5”
• Weight: 2 lbs. Per square foot
• Composition: SBR/EPDM/NBR/Natural rubber
• Colors: B0black
• Edges: Solid molded rubber, beveled
• Cleaning: Sweep, vacuum, or damp mop
• Each mat will be supplied with a 3034 snap and 3040 ground cord. The 3034 snap will be installed into the mat.

Back to 3M Cushion Matting Index Page

3M^TM *Static Control Anti-Fatigue Mat Series 9900*
Product Number	Description	Detailed Description	Price
8960-101-0305	3M ESD Static Control A/F Mat 9900 Size: 3' x 5'	3M Static Control Anti-Fatigue Mat 9900; BLACK; 0.625" x 3' x 5'; Beveled Edges; 3034 snap; 3040 ground cord; 30#; 10.2"x10.2"x37.8"; 1/case; $/case (rack#: 98-0798-5635-1)	$275.00 per Mat
8960-101-0101	3M ESD Static Control A/F Mat 9910 Size: 3' x Custom Length (in 1 foot increment)	3M Static Control Anti-Fatigue Mat 9910; BLACK; ____ mats; 0.625" x 3' x ____'; Beveled Edges; 3034 snap; 3040 gnd cord; 2#/SF; $/LF (rack#: 98-0798-5636-9)	$66.25 per Linear Foot
8960-101-2222	3M ESD Static Control A/F Mat 9920 Octaganol Shaped Size: 22" x 22"	3M Static Control Anti-Fatigue Mat 9920; BLACK; Octagonal Shaped 0.625" x 22" x 22"; Bev; 3034 snap; 3040 gnd cord; 6.5#/mat; $/mat (rack#: 98-0798-5674-0)	$91.25 per mat
XXXX-XXX-XXXX	3M-Test Kit for Static Control Surfaces 701	701 Test Kit for Static-Control Surfaces Kit contains: 1 Megohmmeter 12 0z. (340 g); 1.8 x 3.3 x 4.6 in. (4,57 x 8,,38 x 11,68) 2 Test Weights 5 lbs. (2.27 kg) each 1 Insulated Bulldog Clip 1 Alligator Clip 1 Continuity Test Plate 2 Batteries (22.5V and 1.5V) 1 Operator's Manual 1 Molded Carrying case 701-L Test Leads 701-M Megohmmeter only 701-W 5 lb. Test Weight)	$TBD
XXXX-XXX-XXXX	3M-General Purpose Cleaner (Product No. 8, Twist 'n' Fill System	High-performance, all-purpose cleaner. First choice for your every day cleaning needs. For floors, walls and other non-porous surfaces.	$TBD
XXXX-XXX-XXXX	3M-Ground Cord 3040, 15 ft. with 10 mm Snap	Molded-in male snap fastener with integral 1-megohm resistor on one end, solderless terminal on other. Connects all 3M™ Static Control Mats and Runners to building ground.	$TBD

Prices are F.O.B. point of shipment with transportation charges prepaid via lowest cost routing destination within the continental limits of the United States. Prices for Alaska, Hawaii and Puerto Rico available on request. Prices for orders between $2,000 and $3,999 in full case quantities are INCLUSIVE of freight charges but will be assessed a 10% handling charge. Prices for orders between $250 and $1,999 are INCLUSIVE of freight charges but will be assessed a 15% handling charge. Orders under $250 are EXCLUSIVE of freight charges and will be assessed a $25 handling charge. Shipment to NY, NJ or CT will have State Sales Tax added to the final invoice.
