Century-Long Vinyl ASTM D-178 Corrugated Switchboard Matting
Dependable and High Quality Vinyl and Rubber Runner Matting

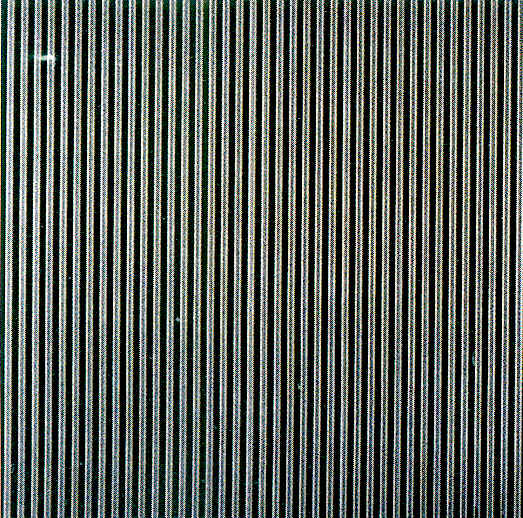

    The Mat King Century-Long ASTM Corrugated Switchboard Matting



       The Mat King Century-Long ASTM Corrugated Switchboard Matting conforms to OSHA requirements for electrical protective devices and is tested to ASTM D-178 and ANSI J6.7, Type II requirements. Every roll is proof tested at the specified voltage over the entire surface. Dielectric test strength exceeds specification requirements to afford an additional margin of safety. This matting also meets the optional requirements cited by ASTM for flame resistance, ozone resistance and oil resistance.


Product Data
Made in USA
Made in USA
Product Description
Product Name: Corrugated Switchboard Matting Corrugated Switchboard Matting
Description: ASTM D-178 Type II Class 2 ASTM D-178 Type II Class 1
Surface Configuration: Top: Corrugated Top: Corrugated
Bottom: Knurled with engraved cirtification Bottom: Knurled with engraved cirtification
Thickness: 1/4" thick (minimum) 3/16" thick (minimum)
Chemical Resistance: Excellent chemical resistance to many commercial and industrial chemicals. Please call (800)442-6544 or e-mail for specific recommendations. Excellent chemical resistance to many commercial and industrial chemicals. Please call (800)442-6544 or e-mail for specific recommendations.
Physical Properties
Characteristics:
Perforamance
Test Method
Perforamance
Test Method
Tensile Strength:
700 psi
ASTM-D-412
700 psi
ASTM-D-412
Elongation:
250%
ASTM-D-412
250%
ASTM-D-412
Moisture Absorbtion:
.08%
ASTM-D-570
.08%
ASTM-D-570
Flammability:
Pass
ASTM-D-1692
Pass
ASTM-D-1692
Ozone Resistance:
Pass
ASTM-D-1149, Method "A"
Pass
ASTM-D-1149, Method "A"
Accelerated Aging:
90% of Original
ASTM-D-573
90% of Original
ASTM-D-573
Oil Resistance:
5% Volume Increase
ASTM-D-471
5% Volume Increase
ASTM-D-471
Electrical Characteristics
Characteristics:
Perforamance
Test Method
Performance
Test Method
Dielectric Test Voltage:
30,000 VAC
ASTM-D-178
20,000 VAC
ASTM-D-178
Proof Tested Over Entire Surface at:
20,000 VAC
ASTM-D-178
10,000 VAC
ASTM-D-178
Recommended Maximum Use Voltage:
17,000 VAC
ASTM-D-178
7,500 VAC
ASTM-D-178



Product Number Item Description Detailed Description Price/LY Price/roll
9928-101-2425 Century-Long ASTM Switchboard Matting-Vinyl  1/4" x 24"x 25 Yards Black

Century-Long Switchboard Matting, per ASTM D-178 Type II (class 2), Recommended Maximum Use 17,000 VAC, Black, Knurled Back, 1/4"x24"x 25 yards 162# $/roll (rack#: 39-44-4750-003)

$$60.40 $1,510.00
9928-101-3025 Century-Long ASTM Switchboard Matting-Vinyl  1/4" x30"x 25 Yards Black DISCONTINUED Century-Long Switchboard Matting, per ASTM D-178 Type II (class 2), Recommended Maximum Use 17,000 VAC, Black, Knurled Back, 1/4"x30"x 25 yards 325# $/roll (rack#: 39-44-4760-003) Discontinued Discontinued
9928-101-3625 Century-Long ASTM Switchboard Matting-Vinyl  1/4" x36"x 25 Yards Black Century-Long Switchboard Matting, per ASTM D-178 Type II (class 2), Recommended Maximum Use 17,000 VAC, Black, Knurled Back, 1/4"x36"x 25 yards 400# $/roll (rack#: 39-44-4740-003) $76.00 $1,900.00
9928-101-4825 Century-Long ASTM Switchboard Matting-Vinyl  1/4" x48"x 25 Yards Black

Century-Long Switchboard Matting, per ASTM D-178 Type II (class 2), Recommended Maximum Use 17,000 VAC, Black, Knurled Back, 1/4"x48"x 25 yards 525# $/roll (rack#: 27-88-7520-003)

$117.33 $2,933.33

Product Number Item Description Detailed Description Price/LY  Price/roll
9928-201-2425 Century-Long ASTM Switchboard Matting-Vinyl 3/16"x24"x25 Yards Black DISCONTINUED Century-Long Switchboard Matting, per ASTM D-178 Type II (class 1), Recommended Maximum Use 7,500 VAC, Black, Knurled Back, 3/16"x24"x 25 yards 195# $/roll (rack#: 39-44-7700-003) Discontinued Discontinued
9928-201-3025 Century-Long ASuM Switchboard Matting-Vinyl 3/16"x30"x25 Yards Black DISCONTINUED Century-Long Switchboard Matting, per ASTM D-178 Type II (class 1), Recommended Maximum Use 7,500 VAC, Black, Knurled Back, 3/16"x30"x 25 yards 245# $/roll (rack#: 39-44-7710-003) Discontinued Discontinued
9928-201-3625 Century-Long ASTM Switchboard Matting-Vinyl 3/16"x36"x25 Yards Black Century-Long Switchboard Matting, per ASTM D-178 Type II (class 1), Recommended Maximum Use 7,500 VAC, Black, Knurled Back, 3/16"x36"x 25 yards 295# $/roll (rack#: 39-44-7720-003) $61.80 $1,545.00
9928-201-4825 Century-Long ASTM Switchboard Matting-Vinyl 3/16"x48"x25 Yards Black

Century-Long Switchboard Matting, per ASTM D-178 Type II (class 1), Recommended Maximum Use 7,500 VAC, Black, Knurled Back, 3/16"x48"x 25 yards 390# $/roll (rack#: 27-88-7560-003) Minimum Order: Six Rolls = $12,360.00

$82.40 $2,060.00

Prices are exclusive of Freight. Provide "Ship To" city, state, and Zip Code with quantity of each type of matting required for custom quote via E-mail, Fax, phone or mail. Freight will be "allowed" for orders of three (3) rolls or more to one industrial or commercial location at one time in the Continental USA.



Quantity Discount Schedule:
Number of Rolls ordered for Delivery at one time to one location. Percentage of Discount off Listed Prices
1 to 5 rolls 0%
6 to 10 rolls 10%
11 to 25 rolls 25%
26 to 49 rolls 30%
50 to 99 rolls 35%
100 rolls or more 40%



Other Switchboard Matting Options

Switchboard Matting - Diamond Deckplate Mil-DTL-15562G Type III

Switchboard Matting - Smooth Top per Mil-DTL-15562G Type II





Technical Specifications

Warantee

Standard Specification for Rubber Insulating Matting per ASTM Designation: D 178=-1
