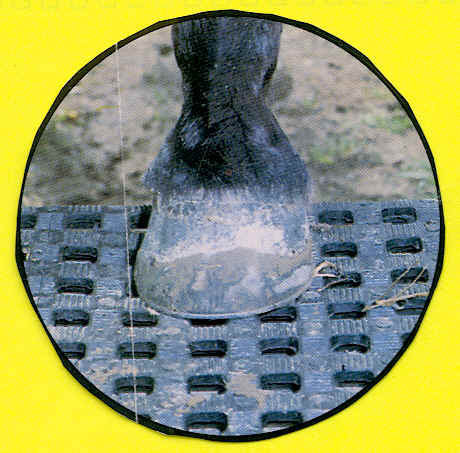

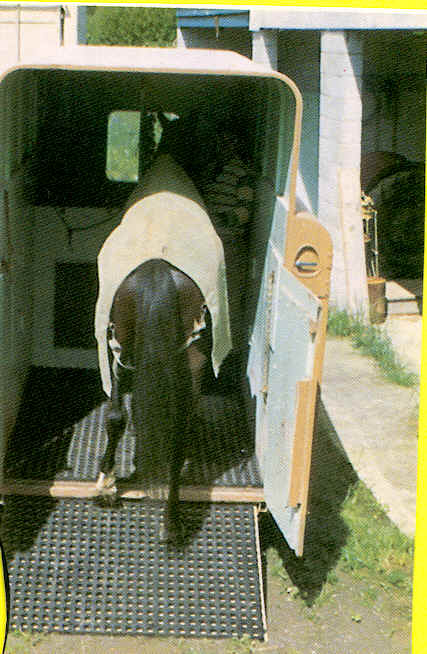

Dundee Interlocking Horse Trailer Matting
The Truly Heavy Duty Drain & Comfort Mat system

       Dundee Interlocking Drain & Comfort Tiles offers a safe, hygienic non-slip work surface with antistatic and electrical insulation properties. Dundee is designed for long use in rugged surroundings; even where hand trucks and forklifts are present. It can sustain loads up to four and a half tons. The special compound of recycled PVC and rubber with UV protection  is not affected by acids, alkalis, grease or oil, organic solvents or chemicals.

       Dundee Interlocking Ant-Fatigue Drain Tiles are suitable for use in temperatures ranging from minus 30 C (minus 22F) to plus 90 C (184F). The Dundee Interlock design allows for fast easy assembly, with no adhesives or floor preparation required. Tiles can be cut to conform various shapes and layouts.



       Material: Recycled PVC and rubber with UV protection (rubber content only in black mats). Plasticized to a shore hardness of 6780 shore A. Recycled rubber and ethylene.

       Guarantee: Fiven (5) years from date of purchase against faulty workmanship or faulty materials exclusive of damage through mistreatment, vandalism, normal wear and tear, excessive flooding or fire. Manufacturer will honor claims established as outlined above if notified in writing within ten (10) days of the occurrence of a claimable fault.

       Specification: Dundee Interlocking Mats have a safe fail height test on concrete of 23.5". Suitable for use in temperatures ranging from minus 30 degrees C (minus 22 degrees F) to plus 90 degrees C (184 degrees F). Mat size increases 030 degrees C (86 degrees F): 1/32" and from 050 degrees C (122 degrees F) degrees: 1/16.

       Notes:
1. Dimensions and weights are approximate. Packed 10 Tiles per box.


2. To calculate area:
a) Each 20" x 20" tile is 2.77 SF. 20"x20" = 400"/144" or 1 SF = 2.77 SF
b) Divide tile SF (2.77) into area SF example: 3'x8'=24SF. 24/2.77=8.6 tiles. Thus, order 9 tiles.


3. To calculate edge requirements:
a) Multiply dimension in feet by 12" example: 8' long x 12"=96"
b) Divide result of total inches by inches per edge tile inches; 20" example: 96"/20"=4.8 edges; order 5 edges.

       Sizes:
Square Tile: 20"x 20" x1"
Edge Tile: 20"x 4"x 1"
Corner Tile: 24"x 4"x 1"


Availability: Black is stocked others are production items.

Dundee Interlocking Drain Tiles
Product Number
Description Price/each
7511-101-2020

Dundee II Interlocking Drain Tile with 1"x1" Holes; 20"x20"x1"; BLACK; 5.52#/tile 10 tiles/carton; $/tile for 1-499 tiles (rack#: V-7511-101-2020)

$25.09
Dundee Interlocking Solid Top Comfort Tiles
Product Number
Description Price/each
7511-201-2020 Dundee II Interlocking Solid Topped Comfort Tiles; BLACK; 20"x 20"x 1"; 7.2#/tile 10 tiles/carton $/tile for 1-499 tiles (rack#: V-7511-201-2020) $26.18
Dundee Interlocking Beveled Edges
Product Number
Description Price/each
7511-400-2041

Dundee II Interlocking Tile Beveled Edge, FEMALE; Color: BLACK; 1.44#/tile 10 edge tiles/carton; $/piece for 1-499 pieces. (rack#: V-7511-400-2041)

$19.00
7511-400-2141
Dundee II Interlocking Tile Beveled Edge, MALE; Color: BLACK; 1.44#/tile 10 edge tiles/carton; $/piece for 1-499 pieces. (mk p/n 7511-400-2141)
$19.00
7511-402-2041

Dundee II Interlocking Tile Beveled Edge, FEMALE; Color: YELLOW; 1.44#/tile 10 edge tiles/carton; $/piece for 1-499 pieces. (rack#: V-7511-402-2041)

$21.18

7511-402-2141

Dundee II Interlocking Tile Beveled Edge, MALE; Color: YELLOW; 1.44#/tile 10 edge tiles/carton; $/piece for 1-499 pieces. (mk p/n 7511-402-2141)

$21.18
Dundee Interlocking Beveled Corners
Product Number
Description Price/each
7511-500-2041

Dundee II Interlocking Tiles Corner Edge; FEMALE; Color: BLACK; Size: 24"x4"x1"; 1.00#/tile 10/carton, $/each for 1-499 (rack#: V-7511-500-2041)

$19.00
7511-500-2141 Dundee II Interlocking Tiles Corner Edge; MALE; Color: BLACK; Size: 24"x 4"x 1"; 1.44#/tile; 10/carton; $/piece for 1-499 pieces. (rack#: V-7511-500-2141) $19.00
7511-505-2041 Dundee II Beveled CORNER Tile; FEMALE; Color: YELLOW; Size: 24"x4"x1"; 1.00#/tile 10/carton, $/each for 1-499 pcs (rack#: V-7511-505-2041) $21.18
7511-505-2141 Dundee II Interlocking Tiles; Beveled CORNER; MALE; Color: YELLOW; Size: 24"x 4"x 1"; 1.44#/tile 10/carton; $/each for 1-499 (rack#: V-7511-505-2141) $21.18

Prices are exclusive of freight which will be quoted on request.

Deliveriess to NY, CT and NJ will have applicable State Sales Tax added to final invoice.
