Major Metal Cast Aluminum or Cast Iron Abrasive Stair Treads and Nosing Introduction
Stair Treads and Nosing for Maximum Durability in Rough Use Area.


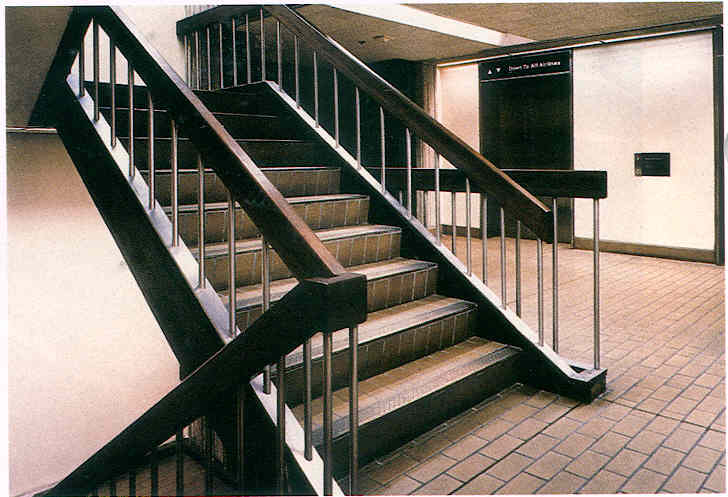

Major Metal Cast Aluminum or Cast Iron Abrasive Stair Treads and Nosing are not intended to help you make a fashion statement. So, don't expect any pretty pictures here. This stuff just works. It can be  specified for:
  • Maximum Durability in Rough Use.
  • Indoor or Outdoor Use
  • New Construction or Renovation
  • Resistance to Unusually Corrosive Environments.
  • Anti-Slip Safety Properties.
  • Unusual Field Conditions.


Poured Concrete Applications
Existing Stair Repair Applications
Concrete Curb Applications
Steel Pan Applications
Structural Treads
Miscellaneous Applications








Please Note:
1. Cast Iron Treads are not recommended for corrosive or exterior environments.
2. Castings are subject to usual foundry draft, tolerances and thickness +/- 1/8".
3.Nosing will show a parting line on nose surface.
4.Standard measurements are from top of nosing.
5 Custom lengths to +/- 1/16".
6.Standard hole size 1/4" with countersunk hole tops.
7. Beveled Treads: Contact The Mat King regarding availability per application.
8. Standard Cast Tread Thickness is 5/16" for treads of 3", 4" or 6" depth. Special Custom Pattern Charges are required for Cast Treads ordered in non-standard thicknesses; i.e. 3/8", 5/8" or 1/2", and for Cast Treads of 5/16" thickness in other than 3", 4" or 6" depths.

These sections are available with concealed integral anchors, wing anchors, or countersunk holes. Click HERE for details.

Poured Concrete: Generally installed full step length less approx. 3" (76.2 mm) clearance at each end.

Depth

Cast Aluminum
Cast Iron
Depth Cast Aluminum Cast Iron
3"
P/N 9833-100-0103
P/N 9833-200-0103
3"
P/N 9833-100-1603 P/N 9833-200-1603
4" P/N 9833-100-0104 P/N 9833-200-0104
4"
P/N 9833-100-1604 P/N 9833-200-1604
6" P/N 9833-100-0106 P/N 9833-200-0106
6"
P/N 9833-100-1606 P/N 9833-200-1606
Custom Depths require pattern with order.
Custom Depths require pattern with order.




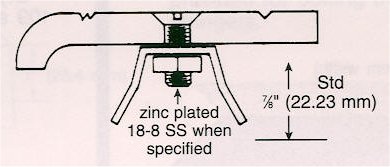

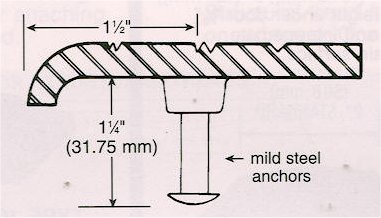

Concealed Integral Anchor   Wing Type Anchor
This concealed type steel anchor is furnished standard on cast types 150 and 250. Anchor spacing is on approximately 10" (254mm) centers. Can be furnished on types 101, 101-SP, 116, 102, 103, 104, 105A, 100 but MUST BE SPRCIFIED.   Steel wing anchors, bolts and nuts are furnished for field attachment into factory-drilled and countersunk holes, prior to tread installation. Standard spacing is 3" 72.2 mm) from ends on approximately 12" (304.8 mm) centers. In single staggered or double row, according to tread width. Can be furnished on most types if specified. 3/4" to 1/2" length - 14 FHMS. Wing metal standard mild steel. Stainless steel on request.






Maximum Length versus Depth - To be used as a guide when developing a specification or bid request. Platform recommended piece size. Consult The Mat King for details.

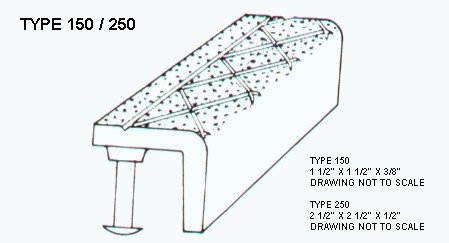

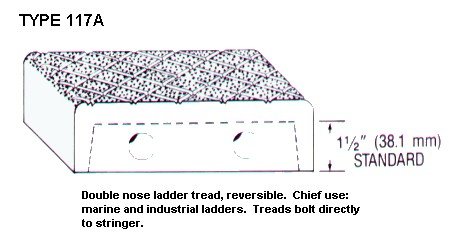

Type Product Numbers Description Depth Range Other Thicknesses Structural Maximum Length Non-Structural Max Length Diagram
100
Cast Aluminum 5/16"

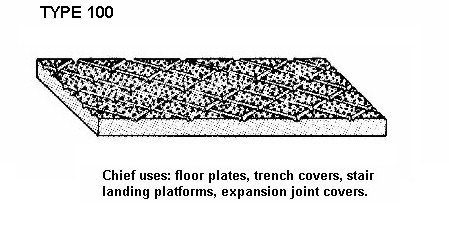

9833-100-0003 Cast Aluminum Tread; Type 100; Qty: ____ pieces 5/16'' x 3'' deep x Length: _____ ; Edges = Square; Anchor Type: ____ 1.10#/LF; $/LF (rack#: AG100.3) 1.5" to 6" 3/8" N/A 8'-6" Type 100

Architectural Specifications

9833-100-0004 Cast Aluminum Tread, Type 100; Qty: ____ pieces 5/16" x 4" deep x Length: _____ ; Edges = Square, Anchor Type: ____ 1.44#/LF; $/LF (rack#: AG100.4)
9833-100-0000 Custom
100
Cast Iron 5/16"
9833-200-0000 Custom
100
Cast Aluminum 5/16"
9833-100-0000 Custom 6" to 12" 3/8", 1/2" or 5/8" N/A 6'
Cast Iron 5/16"
9833-200-0006 Stair Material, Cast Iron, Type 100.6, _____ pcs of 5/16" x 6"x Length: _____ ; Nose = NONE, Back = straight, Anchor Type: ____ ;___#/LF, $/LF (rack#: FG100.6)
9833-200-0007 Stair Material, Cast Iron, Type 100.7, _____ pcs of 5/16" x 7"x Length: _____ ; Nose = NONE, Back = straight, Anchor Type: ____ ;___#/LF, $/LF (rack#: FG100.7)
9833-200-0000 Custom

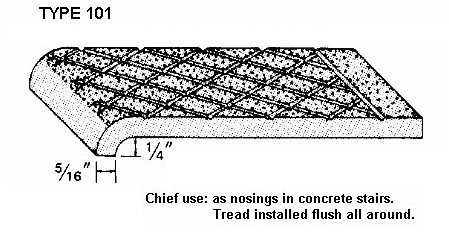

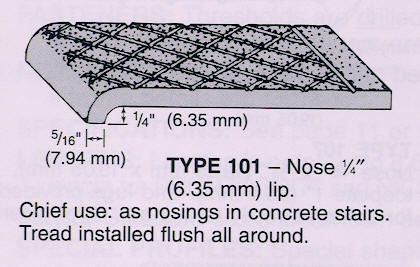

101 Cast Aluminum 5/16" 9833-100-0103 Cast Aluminum Stair Tread; _____ pieces of 5/16" x 3"x Length: _____; Nose = 1/4" radius; Back= straight; Anchor Type: ____ 1.07#/LF; $/LF (rack#: AG101.3) 1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 101
9833-100-0104 Cast Aluminum Stair Tread Type 101; ____ pieces 5/16" x 4"; Nose = 1/4" radius; Back = straight, Length: _____ Anchor Type: ____ 1.43#/LF; $/LF (rack#: AG101.4)
9833-100-0100 Custom
Cast Iron 5/16" 9833-200-0100 Custom
101 Cast Aluminum 5/16" 9833-100-0106 Cast Aluminum Stair Tread Type 101; ___ pieces 5/16" x 6"; Nose = 1/4" radius; Back = straight; Length: _____ Anchor Type: ____ 2.16#/LF; $/LF (rack#: AG101.6) 6" to 12" 5/16" to 5/8" N/A 6'

Type 101 with Integral Anchors

Architectural Specifications

9833-100-0100 Custom
Cast Iron 5/16" 9833-200-0100 Custom

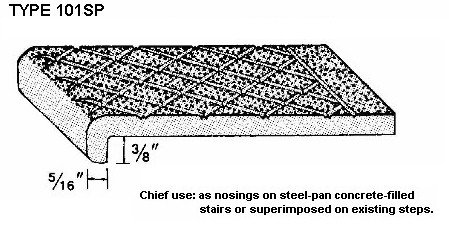

101SP Cast Aluminum 5/16" 9833-101-0103 Cast Aluminum Type 101SP, _____ Pieces of 5/16" x 3"x Length: _____ ; Nose = 3/8" radius; Back = straight; Anchor Type: ____ 1.2#/LF; $/LF (rack#: AG101.3SP) 1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 101SP
9833-101-0100 Custom
Cast Iron 5/16" 9833-201-0103 Cast Iron Type 101SP; _____ Pieces of 5/16" x 3"x Length: _____ ; Nose = 3/8" radius; Back = straight; Anchor Type: ____ ;___#/LF, $/LF (rack#: FG101.3SP)
9833-201-0100 Custom
101SP Cast Aluminum 5/16" 9833-101-0100 Custom 6" to 12" 5/16" to 5/8" N/A 6'
Cast Iron 5/16" 9833-201-0100 Custom

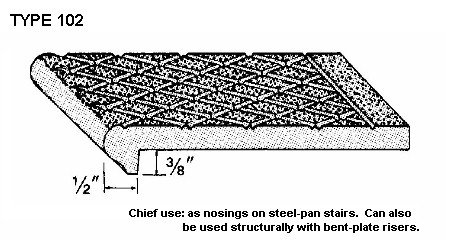

102 102   1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 102
      6" to 12" 5/16" to 5/8" N/A 6'

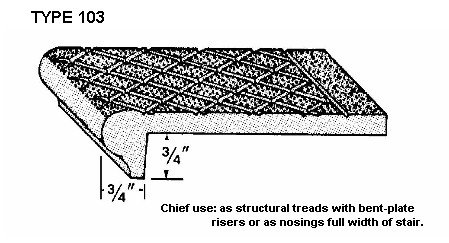

103 103   1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 103
      6" to 12" 5/16" to 5/8" N/A 6'
104 104   1.5" to 6" 5/16" to 3/8" N/A 8'-6"

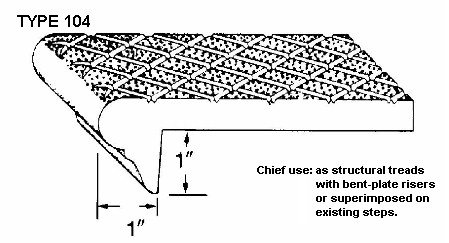

Type 104

Architectural Specifications

      6" to 12" 5/16" to 5/8" N/A 6'

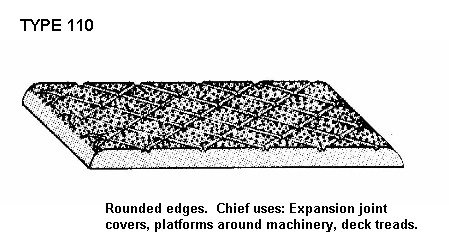

110 110   1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 110
      6" to 12" 5/16" to 5/8" N/A 6'

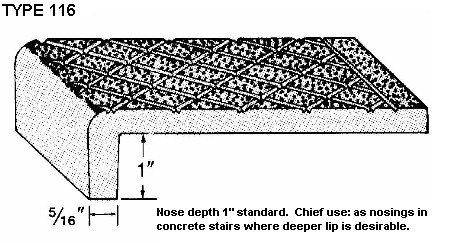

116 116   1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 116
      6" to 12" 5/16" to 5/8" N/A 6'
116A 116A   1.5" to 6" 5/16" to 3/8" N/A 8'-6"

Type 116A

Architectural Specifications

      6" to 12" 5/16" to 5/8" N/A 6'

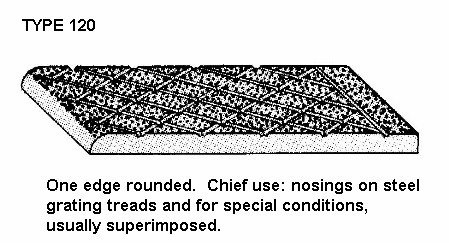

120 120   1.5" to 6" 5/16" to 3/8" N/A 8'-6" Type 120
      6" to 12" 5/16" to 5/8" N/A 6'

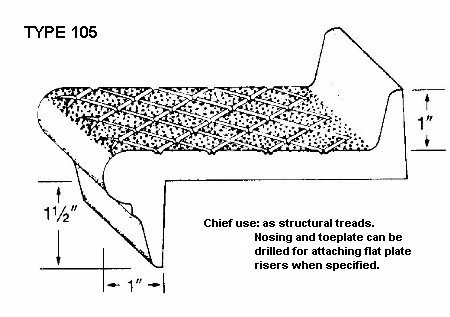

105 105   6" to 12" 1/2" to 5/8" 5' 6' Type 105
105-A 105-A   1-1/8" Slanted 5/16" to 3/8" N/A 8'-6"

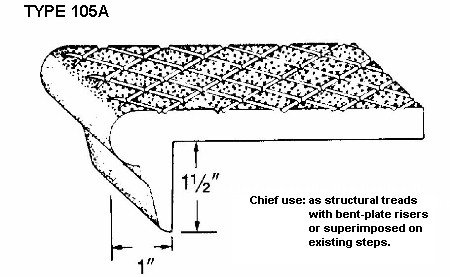

Type 105A

Architectural Specifications

      6" to 12" 5/16" to 5/8" 5' 6'

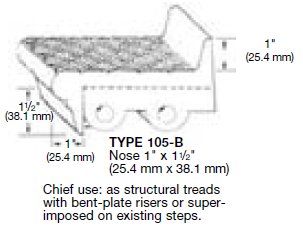

105-B Cast Aluminum or Cast Iron 1-1/8" Slanted 5/16" to 3/8" 5/16" to 3/8" N/A 8'-6" Type 105-B
    6" to 12" 5/16" to 5/8" 5/16" to 5/8" 5' 6'

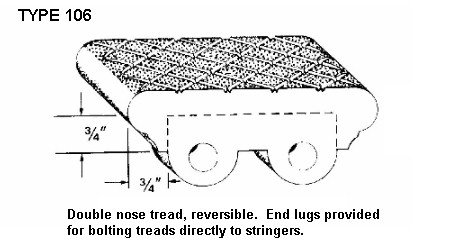

106 106   4" to 6" 1/2" to 5/8" N/A 8'-6" Type 106
        6" to 12" 1/2" to 5/8" 5' 6'

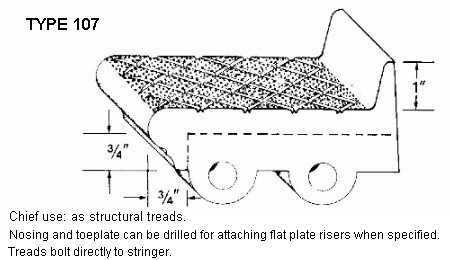

107 107    10" to 12" 1/2" to 5/8" 5' 6' Type 107

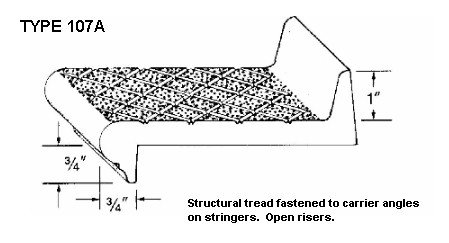

107-A 107-A   10" to 12" 1/2" to 5/8" 5' 6' Type 107A

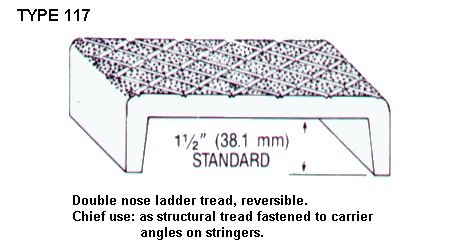

117

117



4" to 6"

1/2" to 5/8" N/A 8'-6" Type 117


6" to 12"

1/2" to 5/8" 5' 6'

117-A

117-A



4" to 6"

1/2" to 5/8" N/A 8'-6" Type 117A


6" to 12"

1/2" to 5/8" 5' 6'

150

150


1.5" to 1.5"

3/8"

N/A 6' Type 150


250

250

  2.5" to 2.5"

1/2"

N/A 6' Type 250




Price Quotation Requests Requirements:
1. Quantity of pieces required of each item.
2. Size of each item, i.e. width (front to back) and length of the tread.
3. Type of Tread, i.e. Product Number and Product name.
4. Thickness of tread.
5. Type of Application, i.e. Poured Concrete, Repair, Curb, Steel Pan, Structural, etc.
6. Type of Anchor.
7. City, State and Zip Code of "Ship To" address for determination of freight charges.
How to Order - Jobs are quoted on a job-by-job basis. Please submit profile requires, sizes and quantities of each type along with contact name, company name, phone, Fax, e-mail and dsetination city, state and Zip Code for the shipping part of the quotation.
